16mm Quill Adapter

from $100.00

Model: SQA-16

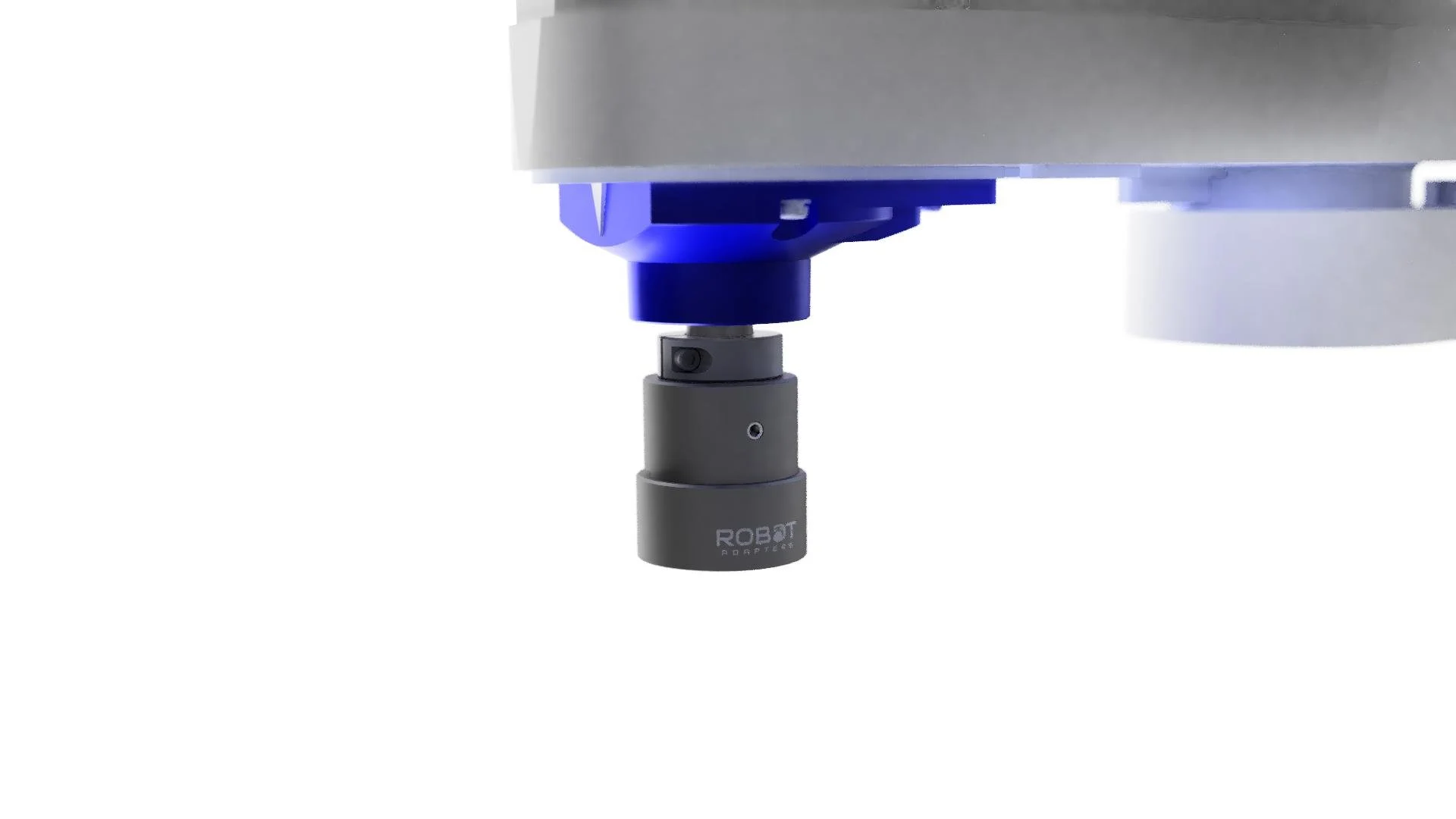

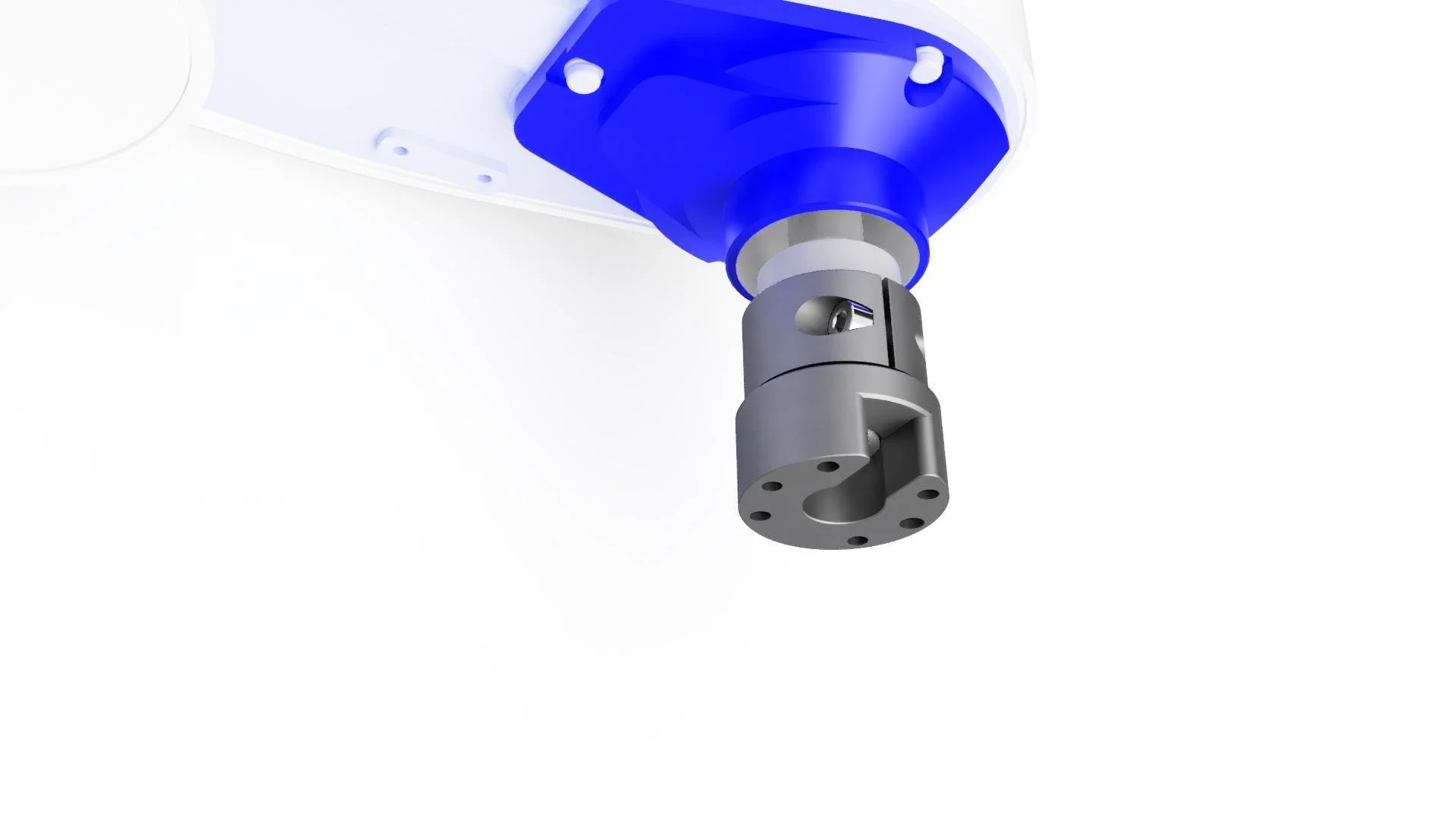

These couplers mount to the Z Axis quill and secure with a tightening screw that holds the coupler securely.
They allow for the attachment of an EOAT directly via ISO 31.5 mounting pattern, or use an ISO adapter plate for alternate sizes.
Alignment of EOAT uses 2 different sized dowel pin holes that allow for repeatable and error free attachments.
All openings to allow pneumatic or electrical connections are smoothly chamfered or radiused to reduce pinch or rub points for long term trouble-free operation.
Adapters are made from anodized 6061 aluminum.
Pinch bolt and set screw are included, EOAT hardware is an option. All hardware is Stainless Steel.

Hardware Options:

Quantity:

Model: SQA-16

These couplers mount to the Z Axis quill and secure with a tightening screw that holds the coupler securely.
They allow for the attachment of an EOAT directly via ISO 31.5 mounting pattern, or use an ISO adapter plate for alternate sizes.
Alignment of EOAT uses 2 different sized dowel pin holes that allow for repeatable and error free attachments.
All openings to allow pneumatic or electrical connections are smoothly chamfered or radiused to reduce pinch or rub points for long term trouble-free operation.
Adapters are made from anodized 6061 aluminum.
Pinch bolt and set screw are included, EOAT hardware is an option. All hardware is Stainless Steel.
